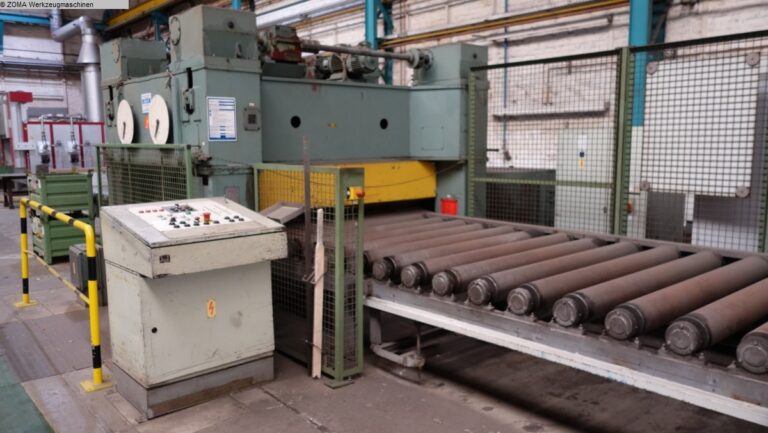

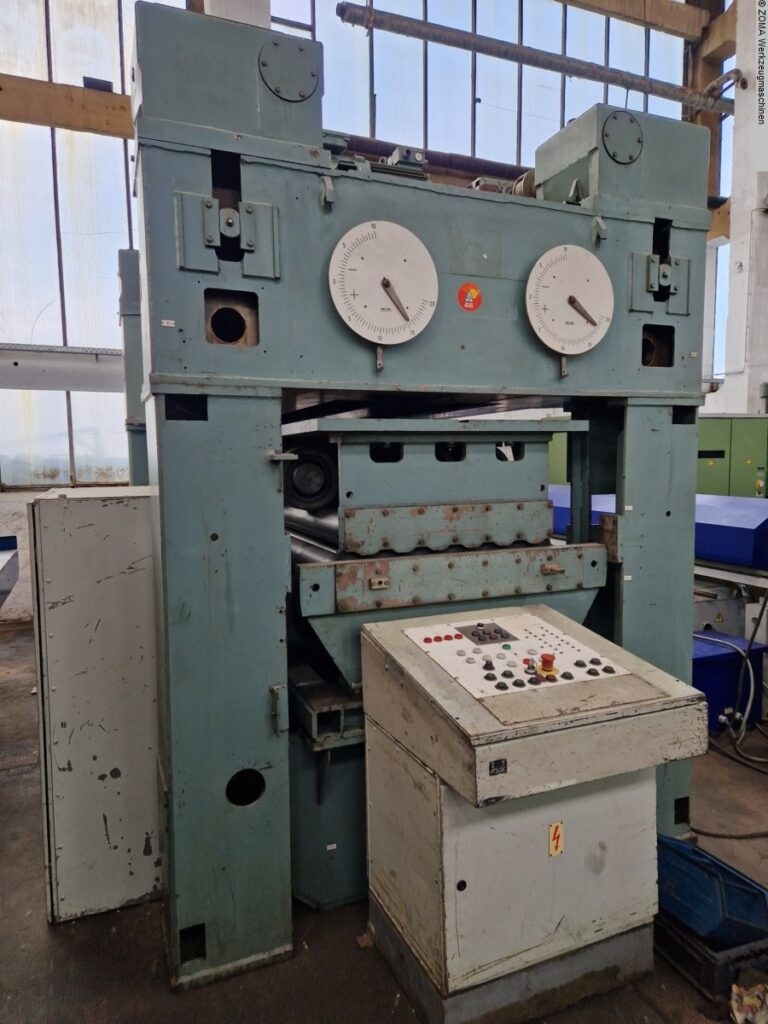

Stock number: 2084-1044
Technical data
| Sheet width 2000 mm | |
| Sheet thickness 10 mm | |
| Sheet thickness - min. 3 mm | |
| Number of levelling rollers 13 pcs. | |
| More information on the product page |
Description of the
Sheet width 2000 mm
Sheet thickness 10 mm
Sheet thickness - min. 3 mm
Number of levelling rollers 13 pcs.
Straightening roller diameter 145 mm
Bale length 2330 mm
Centre distance of the straightening rollers 150 mm
Standard speed 16 m/min
Support roller diameter 290 mm
Number of back-up rollers 21/24 pcs.
Main drive motor 30 kW
Weight 32 tonnes
- Lifting speed of the crosshead: 0.71 mm / sec - Lifting path of the traverse: -18 mm to /to +42 mm - Max. swivelling of the lower traverse: 8 mm
Sheet thickness 10 mm
Sheet thickness - min. 3 mm
Number of levelling rollers 13 pcs.
Straightening roller diameter 145 mm
Bale length 2330 mm
Centre distance of the straightening rollers 150 mm
Standard speed 16 m/min
Support roller diameter 290 mm
Number of back-up rollers 21/24 pcs.
Main drive motor 30 kW
Weight 32 tonnes
- Lifting speed of the crosshead: 0.71 mm / sec - Lifting path of the traverse: -18 mm to /to +42 mm - Max. swivelling of the lower traverse: 8 mm
