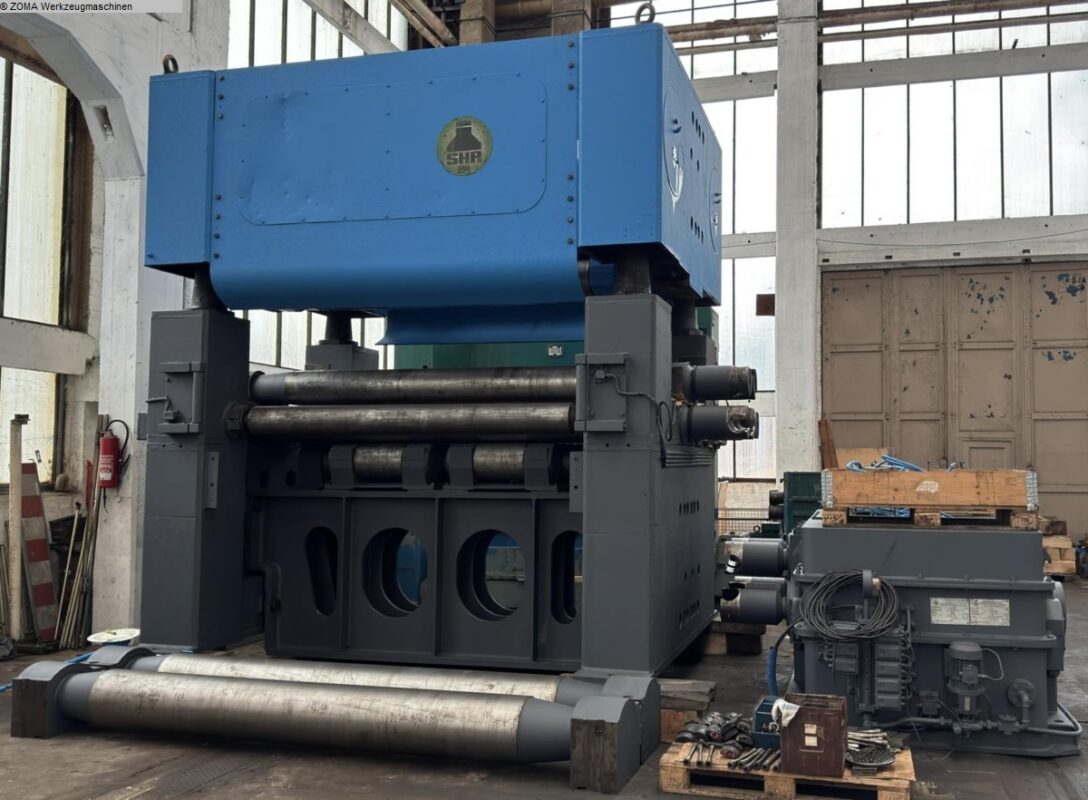

WMW Wildau UBR 32 x 2500-7/16 | 1969

WMW Wildau UBR 32 x 2500-7/16 | 1969WMW Wildau UBR 32 x 2500-7/16 | 1969WMW Wildau UBR 32 x 2500-7/16 | 1969WMW Wildau UBR 32 x 2500-7/16 | 1969WMW Wildau UBR 32 x 2500-7/16 | 1969WMW Wildau UBR 32 x 2500-7/16 | 1969WMW Wildau UBR 32 x 2500-7/16 | 1969WMW Wildau UBR 32 x 2500-7/16 | 1969WMW Wildau UBR 32 x 2500-7/16 | 1969WMW Wildau UBR 32 x 2500-7/16 | 1969
Stock number: 2084-1048

Technical data

Sheet width 2500 mm
Sheet thickness - max. 32 mm
Sheet thickness - max. 39 mm
Sheet thickness - min. 8 mm
More information on the product page

Description of the

Sheet width 2500 mm
Sheet thickness - max. 32 mm
Sheet thickness - max. 39 mm
Sheet thickness - min. 8 mm
Bale length 2700 mm

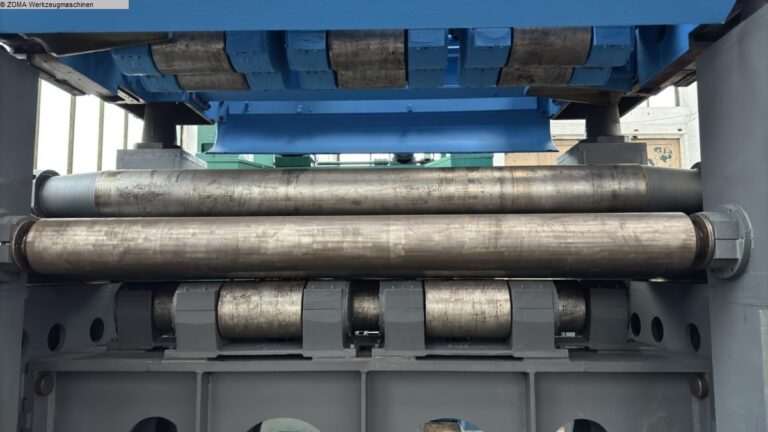

Number of straightening rollers 7 Rollers
Number of driven straightening rollers 5 pcs
Levelling roller diameter 290 mm
Initial straightening roller diameter 345 mm

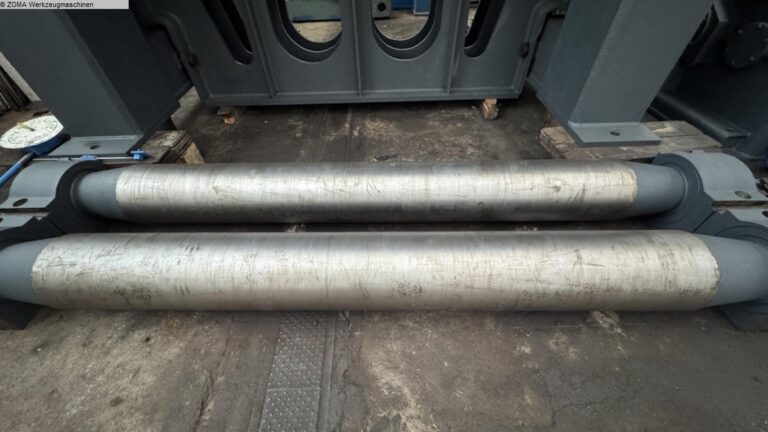

Number of support rollers 13 pcs
Support roller diameter 288 mm
Upper cheek stroke 120 mm
Standard speed 16 m/min

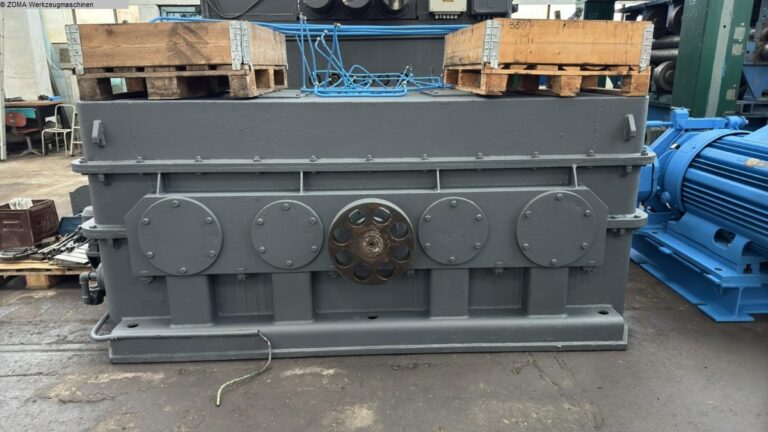

Main drive 90 kW
Total connected load 138 kw
Weight 79 tonnes
- max. sheet thickness ( St 50): 32 mm - max. sheet thickness ( St 34): 39 mm - min. sheet thickness ( St 50): 8 mm

Data sheet (PDF)
