Stock number: 2084-1071
Technical data
| Speed 6000 rpm | |
| x-axis 550 mm | |
| z-axis 200 mm | |
| Rapid traverse 30/20 m/min | |
| More information on the product page |
Description of the
Speed 6000 rpm
x-axis 550 mm
z-axis 200 mm
Rapid traverse 30/20 m/min
Feed rate 11 m/min

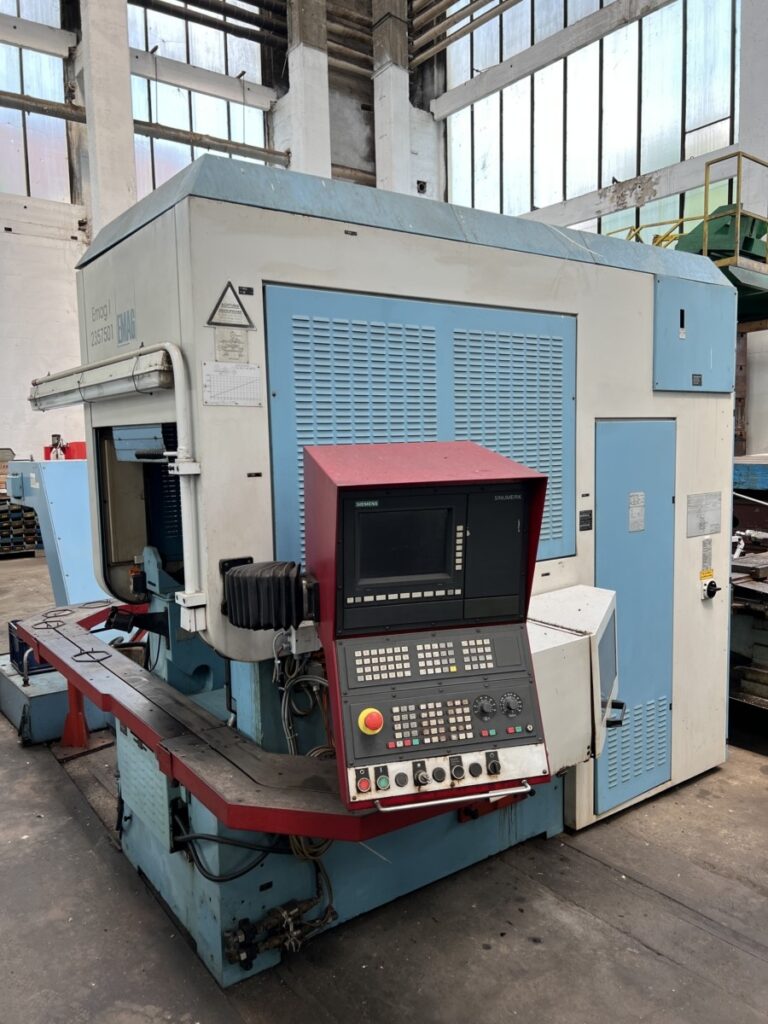

Siemens 840 C control system
Total power requirement 35 kW
Machine weight approx. 6.5 tonnes

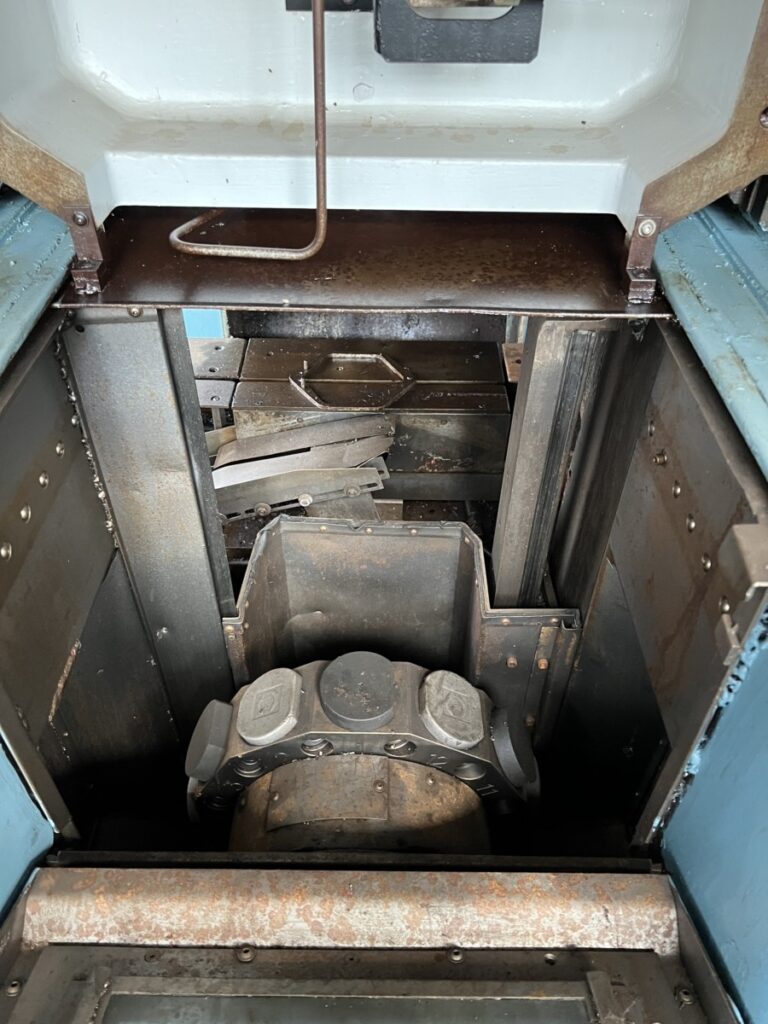

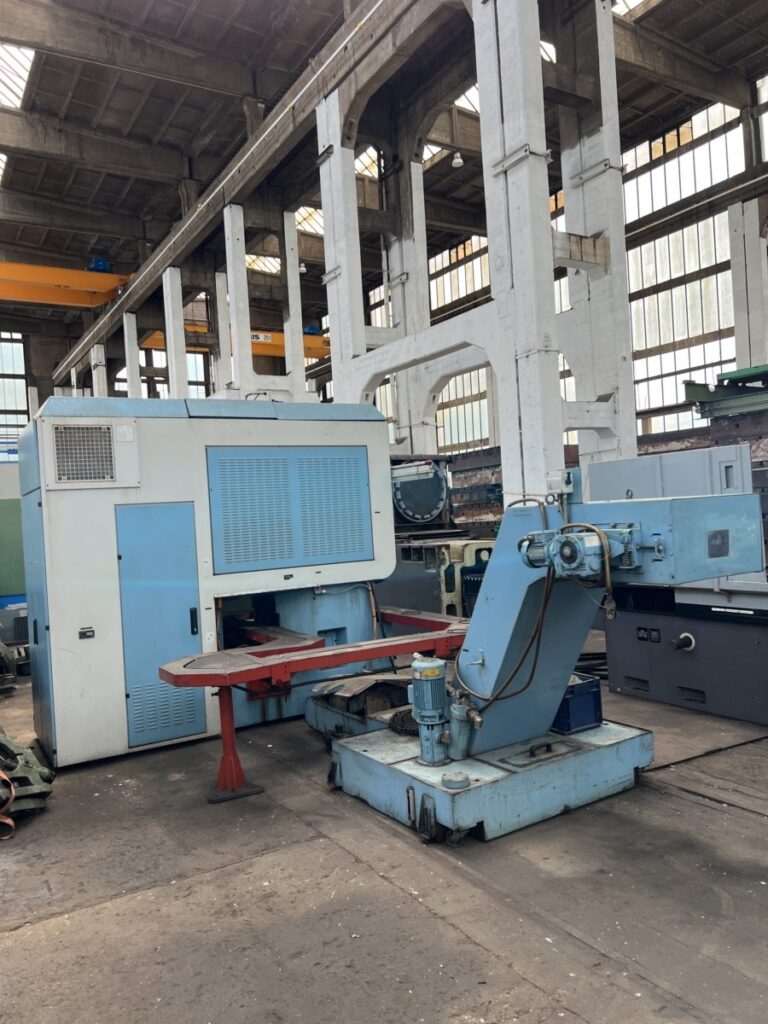

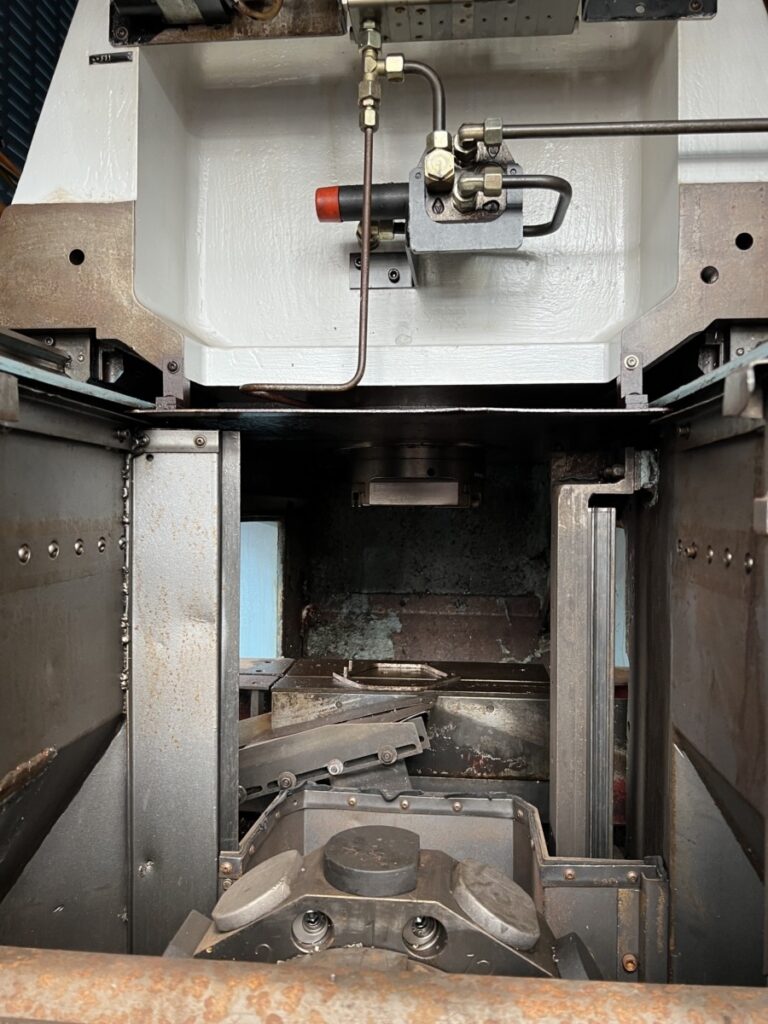

-Speed range: [rpm] : 6,000 - Torque: [Nm]: 480 - Max. Turning Ø over bed: 290 mm -Chuck Ø: 200 mm - Turret: 12-position, VDI 40, Sauter - Driven tools 7.8 KW, - Traverse paths: - X-axis: 550 mm - Z-axis: 200 mm - Rapid traverse: (X/Z) [m/min] 30 / 20 - Feed: (X/Z) [m/min.] 11 KN - Equipment features: - chip conveyor left; 300 mm wide; ejection height 800 mm - Measuring probe; direct linear measuring system; glass scales in all axes, - Heidenhain circulating pick-up storage conveyor - Machine with infeed conveyor for parts loading - Specification: - 2007 overhauled for approx. 50,000 €, complete headstock renewed. - Feed unit replaced
