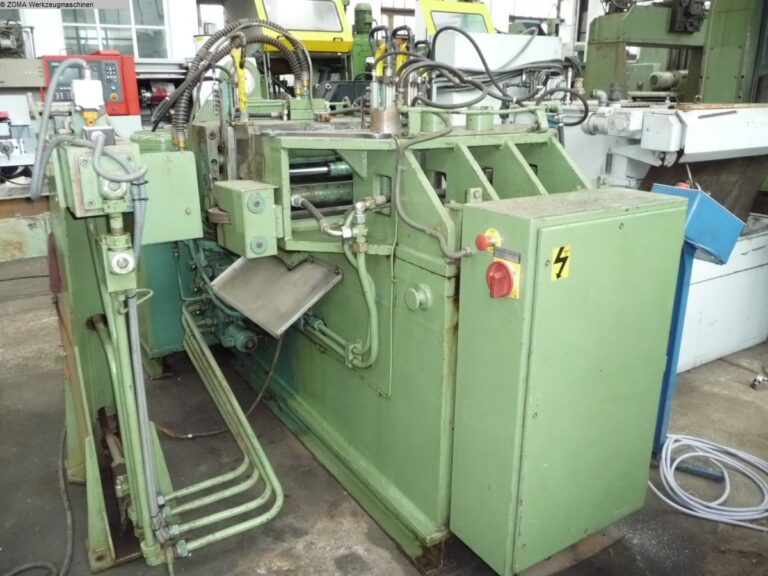

Stock number: 2084-1089
Technical data
| Pressure 160 t | |
| Stroke 400 mm | |
| Table size 1150 x 350 mm | |
| Piston diameter 300 / 185 mm | |
| More information on the product page |
Description of the
Pressure 160 t
Stroke 400 mm
Table size 1150 x 350 mm
Piston diameter 300 / 185 mm
Projection 225 mm
Pressing speed 16....6 mm/sec
Feed speed 75 mm/sec
Return speed 208 mm/sec
Total power requirement 14 kW
Machine weight approx. 8.5 tonnes
- Pressing speed: 16 ...6 mm / sec - Forward run: 75 mm / sec - Return: 208 mm / sec - Installation width between piston pressure piece and crosshead pressure pieces: 320 mm - Distance of pressure pieces to piston or table: 50 ... 888 mm
Stroke 400 mm
Table size 1150 x 350 mm
Piston diameter 300 / 185 mm
Projection 225 mm
Pressing speed 16....6 mm/sec
Feed speed 75 mm/sec
Return speed 208 mm/sec
Total power requirement 14 kW
Machine weight approx. 8.5 tonnes
- Pressing speed: 16 ...6 mm / sec - Forward run: 75 mm / sec - Return: 208 mm / sec - Installation width between piston pressure piece and crosshead pressure pieces: 320 mm - Distance of pressure pieces to piston or table: 50 ... 888 mm
