Stock number: 2084-1091
Technical data
| Rohrdurchmesser 30 mm | |
| Wandstärke 2 mm | |
| Bending radius min. / mm | |
| Bending angle max. +/- 180 + 10 ° | |
| More information on the product page |

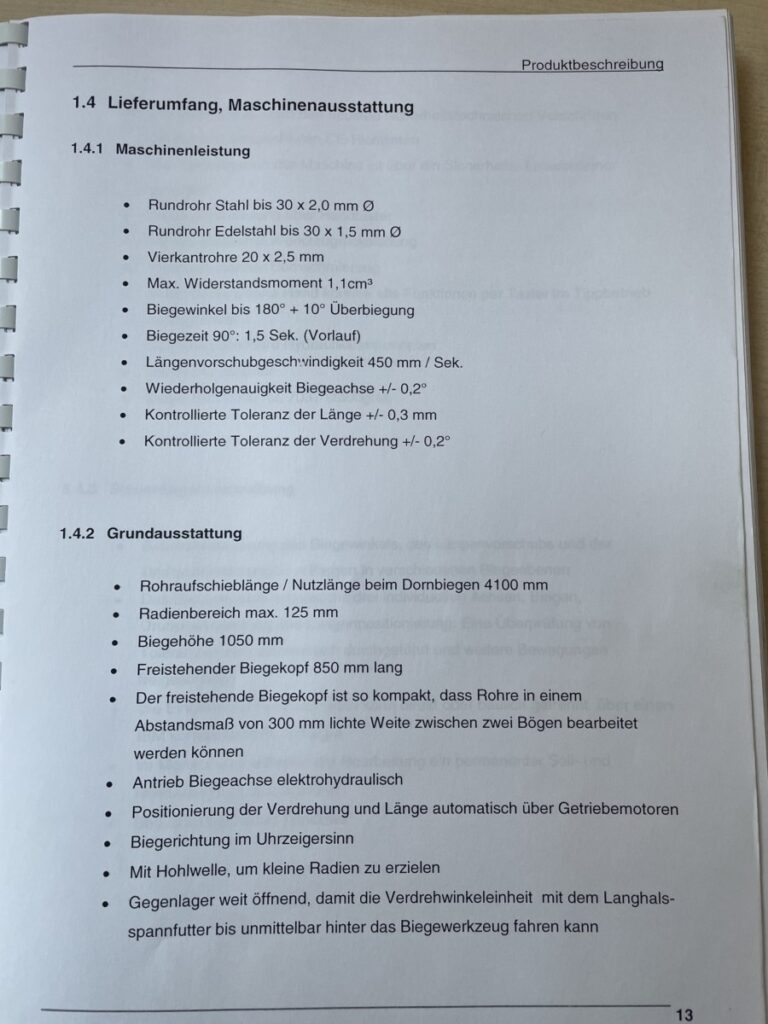

Description of the
Rohrdurchmesser 30 mm
Wandstärke 2 mm
Bending radius min. / mm
Bending angle max. +/- 180 + 10 °
Pipe extension length 4100 mm
- Round tube steel up to 30 x 2.2 mm ^2 - Stainless steel round tube up to 30 x 1.5 mm - Square tubes 20 x 2.5 mm - Bending time 90 degrees: 1.5 sec. (feed) - Length feed speed: 450 mm/sec. - Radius range max 125 mm - Free-standing bending head 850 mm long - Bending axis drive: electro-hydraulic
Wandstärke 2 mm
Bending radius min. / mm
Bending angle max. +/- 180 + 10 °
Pipe extension length 4100 mm
- Round tube steel up to 30 x 2.2 mm ^2 - Stainless steel round tube up to 30 x 1.5 mm - Square tubes 20 x 2.5 mm - Bending time 90 degrees: 1.5 sec. (feed) - Length feed speed: 450 mm/sec. - Radius range max 125 mm - Free-standing bending head 850 mm long - Bending axis drive: electro-hydraulic
