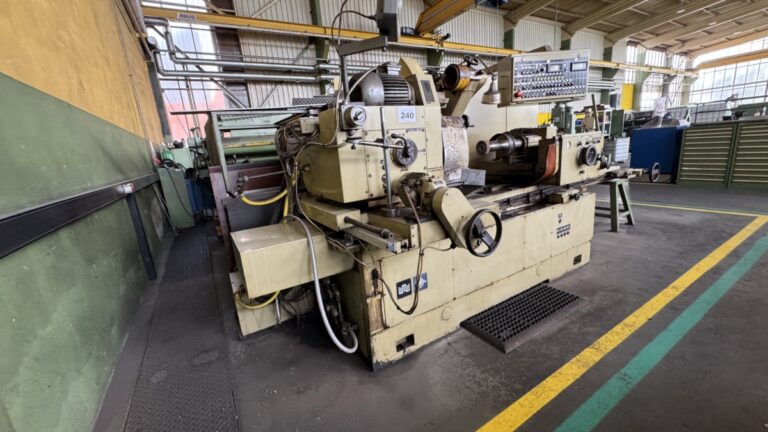

Stock number: 2084-1251
Technical data
| Inner diameter 20... 400 mm | |
| Grinding depth 315 mm | |
| Internal grinding spindle speeds infinitely variable 2640...16500 rpm | |
| Workpiece spindle speed 40....400 rpm | |
| More information on the product page |
Description of the
Inner diameter 20... 400 mm
Grinding depth 315 mm
Internal grinding spindle speeds infinitely variable 2640...16500 rpm
Workpiece spindle speed 40....400 rpm
Table speed 0.1....8 m/min
Rapid traverse 10 m/min
Table travel 630 mm
Total power requirement 16 kW
Machine weight approx. 5.8 tonnes
Grindable diameter in the workpiece guard: inside / internal 20..400 mm; external 500 mm max. workpiece diameter in the workpiece guard: 500 mm max. grinding depth: 315 mm Grindable taper angle: 60 ° Internal grinding spindle speeds: 2640...16500 rpm Drive power of face grinding unit: 4 kW Workpiece motor drive power: 1.5 kW Workpiece spindle speeds: 40...400 rpm Table speed: 0.1...8 m / min Rapid traverse: 10 m / min Table travel: 630 mm Max. distance from workpiece spindle flange to grinding spindle carrier: 1250 mm
Grinding depth 315 mm
Internal grinding spindle speeds infinitely variable 2640...16500 rpm
Workpiece spindle speed 40....400 rpm
Table speed 0.1....8 m/min
Rapid traverse 10 m/min
Table travel 630 mm
Total power requirement 16 kW
Machine weight approx. 5.8 tonnes
Grindable diameter in the workpiece guard: inside / internal 20..400 mm; external 500 mm max. workpiece diameter in the workpiece guard: 500 mm max. grinding depth: 315 mm Grindable taper angle: 60 ° Internal grinding spindle speeds: 2640...16500 rpm Drive power of face grinding unit: 4 kW Workpiece motor drive power: 1.5 kW Workpiece spindle speeds: 40...400 rpm Table speed: 0.1...8 m / min Rapid traverse: 10 m / min Table travel: 630 mm Max. distance from workpiece spindle flange to grinding spindle carrier: 1250 mm
