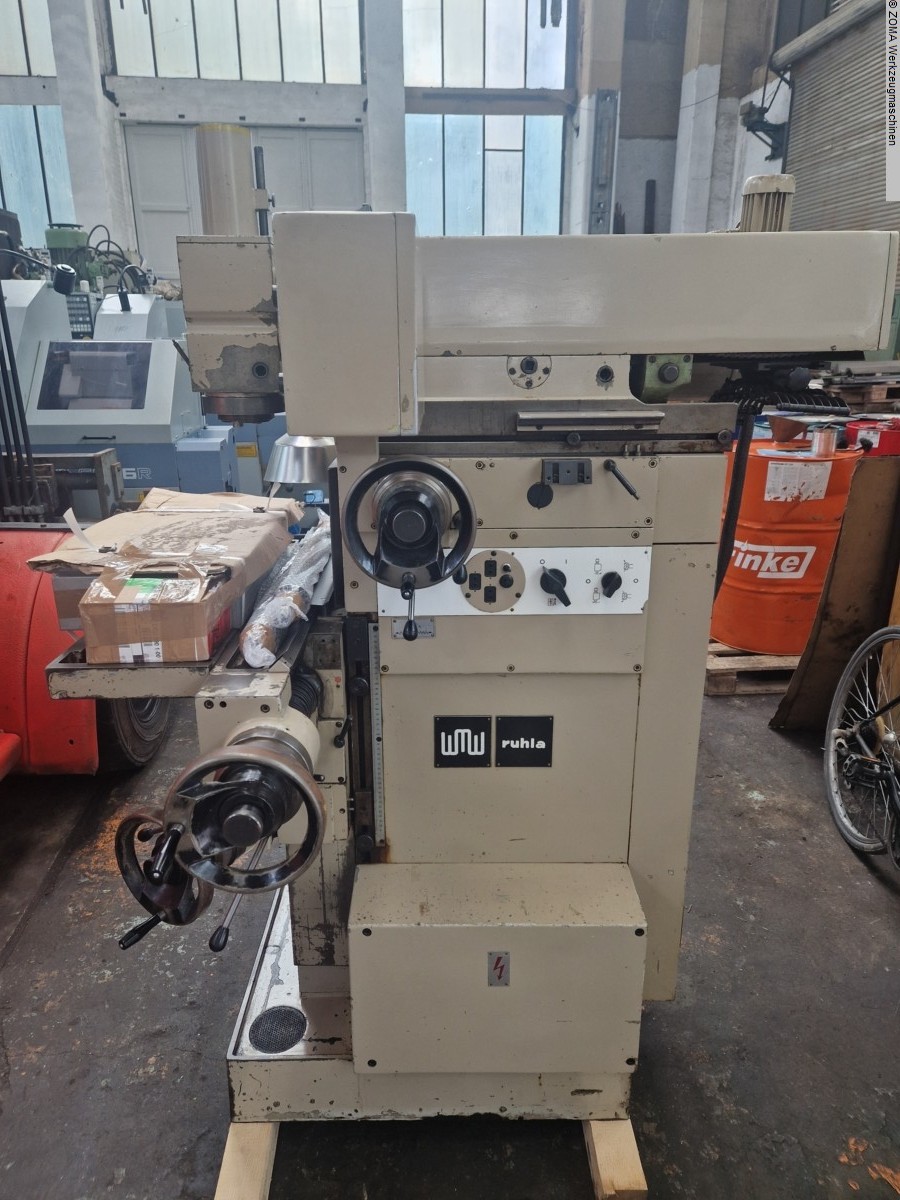

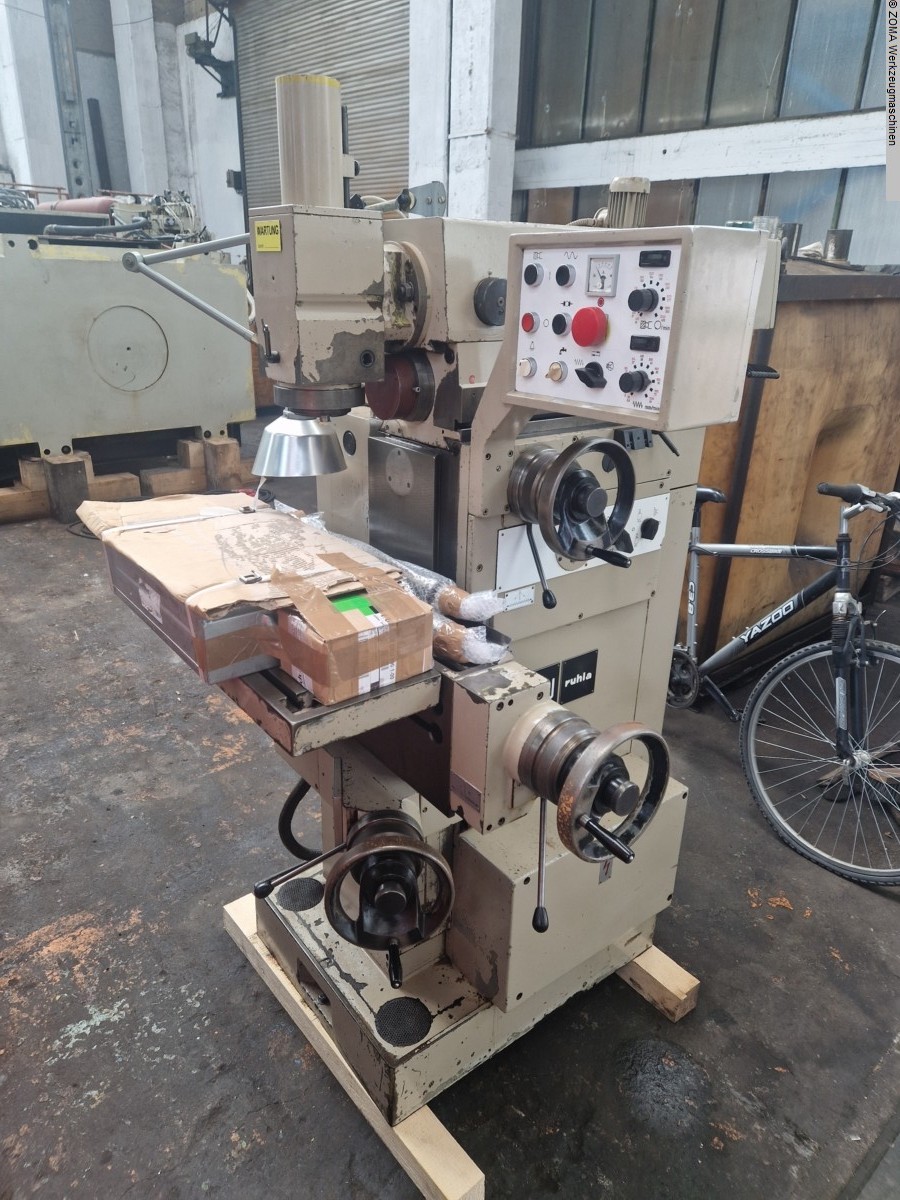

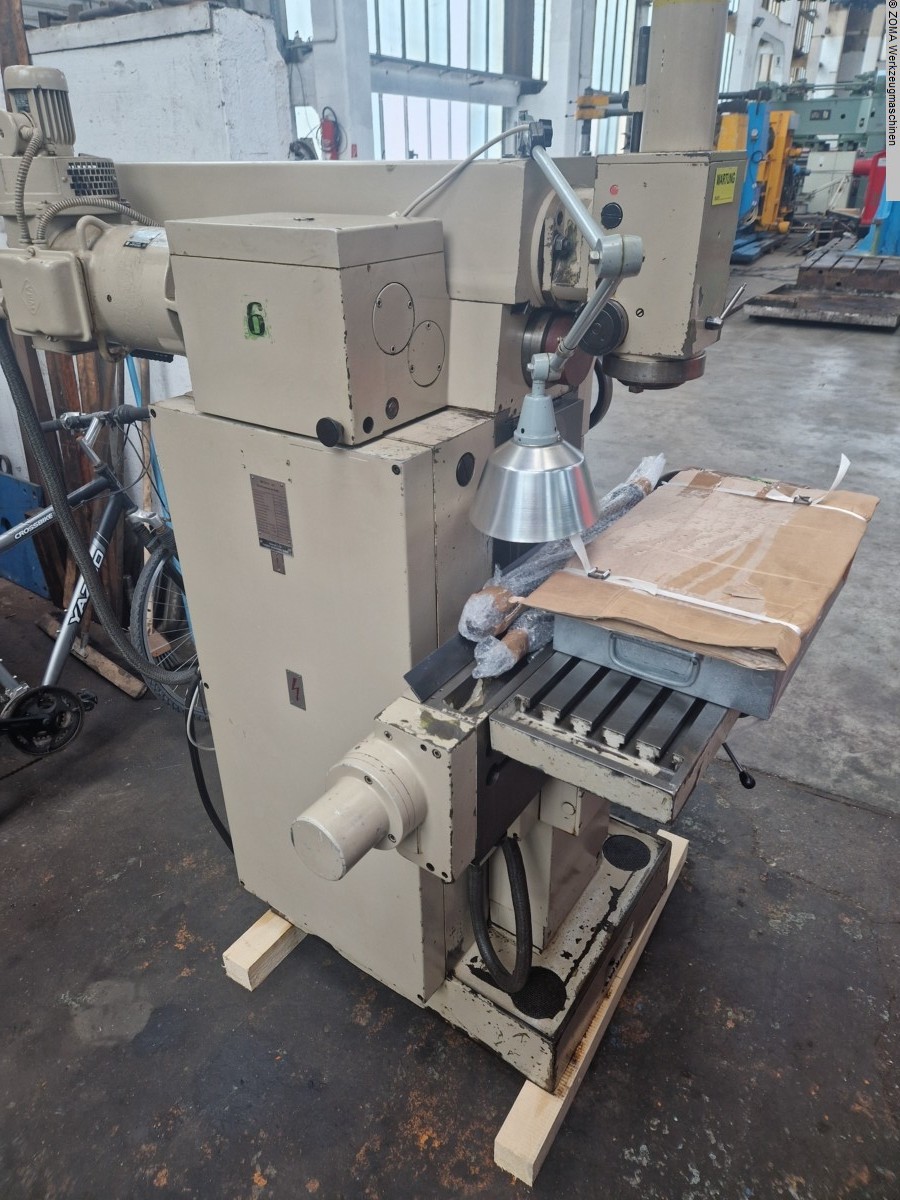

FUW 250 /IV WMW – RUHLA

x-way 400 mm
y-path 250 mm
z-path 300 mm
Tool holder ISO 40
Milling head - swivelling + / - 360 °
Spindle speeds - infinitely variable 45...2240 rpm
Spindle speeds of the horizontal head: 45....2240 U7min
Table size 630 x 345 mm
Table load 120 kg
Feed rate - fine adjustment 6.3....1250 mm/min
Distance stand-table edge min/max 155/500 mm
Distance spindle/table horiz. 38...438 mm
Vertical movement of the milling spindle Stroke 80 mm
Distance spindle/table vert. ...400 mm
Total power requirement 7 kW
Machine weight approx. 1.45 tonnes
Space requirement approx. 1.45 x 1.4 x 1.75 m
