Pressure 40 t
Projection 225 mm
Hub 100 mm
Total power requirement 4.7 kW
Machine weight approx. 3.45 tonnes
Type: KD 2326
Manufacturer: STANKO
Year of construction: 1980
Pressing force/ rated pressure: 40 t

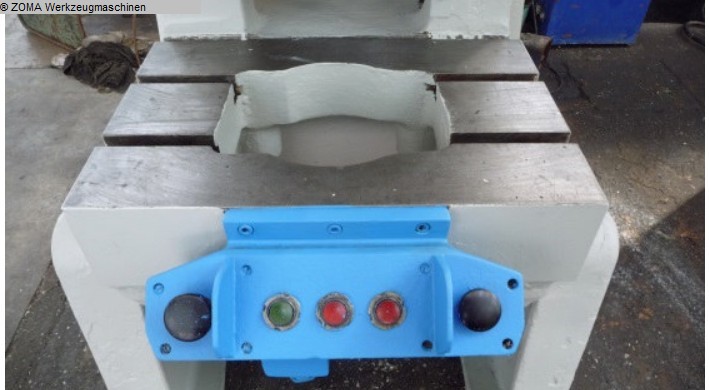

Table size / surface of bed: 600×400 mm; Hole:100 mm diam.
Plunger stroke / stroke of slide: 10...80 mm
Number of strokes: 140 / min
Plunger adjustment/ adjustment of slide: 150 mm
Max. Distance between table and plunger /
max distance between table and slide: 255 mm
Projection / gap: 225 mm
Leistung des Hauptmotors/ Power of main motor: 4,7 kW
Gewicht / weight: 3.45 t

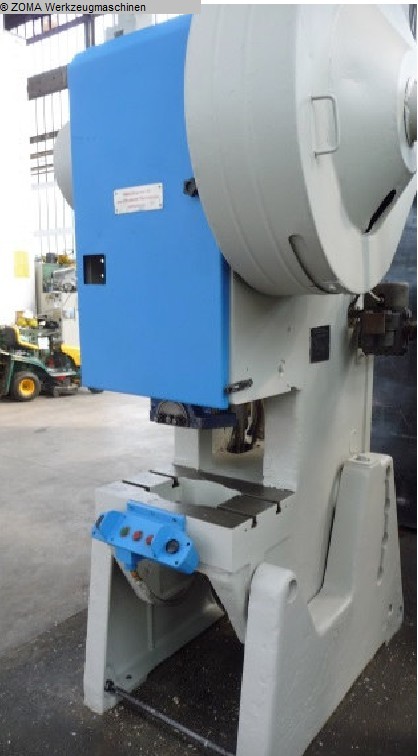

STANKO KD2326 | 1980
3.500,00 €
| Pressure 40 t | |
| Projection 225 mm | |
| Hub 100 mm | |
| Total power requirement 4.7 kW | |
| More information on the product page |
Please note our general terms and conditions
