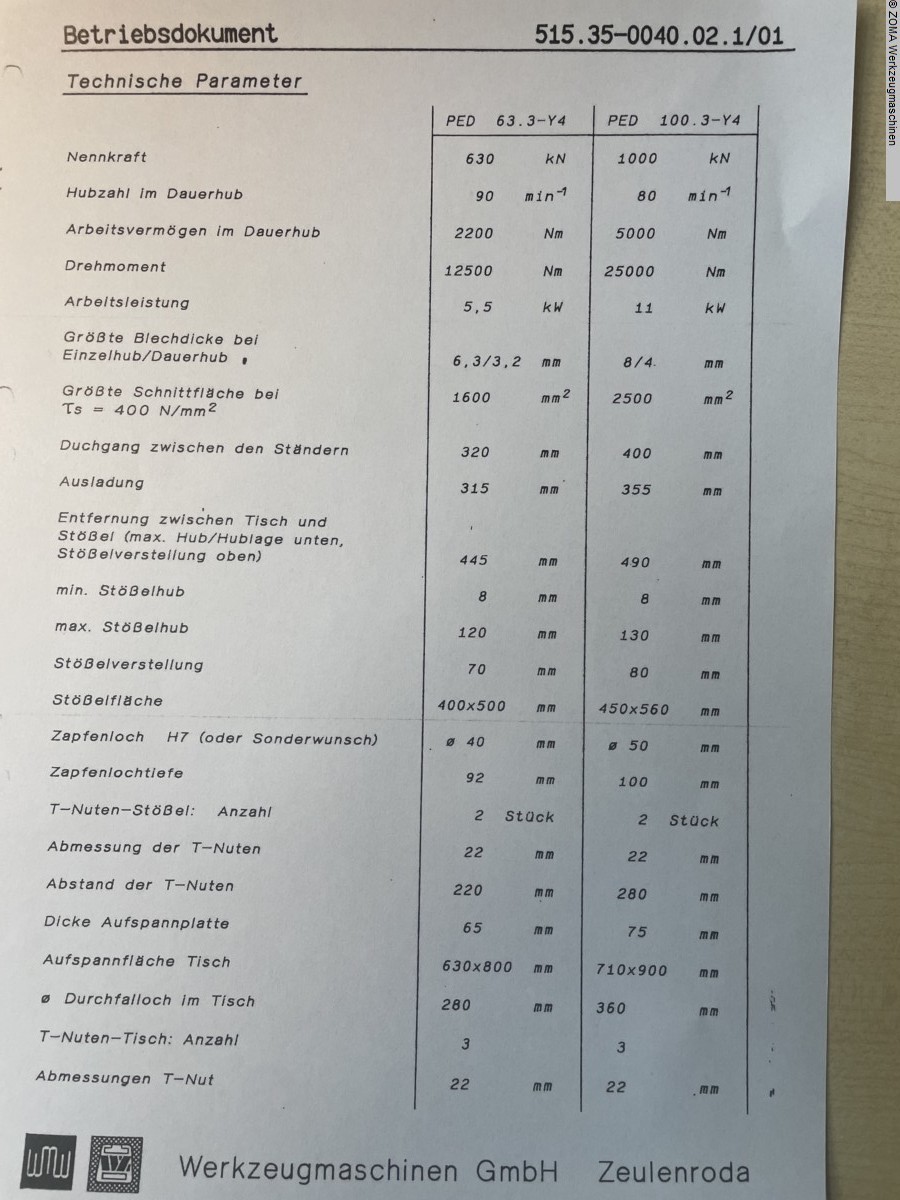

Nominal force 63 t
Number of strokes in continuous stroke 90 min
Working capacity 2200 Nm
Torque 12500 Nm
Working power 5.5 kW
Sheet thickness - max. 6.3 / 3.2 mm
Cutting area 1600 mm²
Clearance between the uprights 320 mm
Projection 315 mm
Plunger stroke - min. 8 mm
Plunger stroke - max. 120 mm
Plunger adjustment 70 mm
Plunger surface 400 x 500 mm
Pivot hole in plunger 40 mm
Mortise (depth x diameter) 92 mm
T-slots 2 pcs
WMW PEDN 63/2 | 1970
4.700,00 €
| Nominal force 63 t | |
| Number of strokes in continuous stroke 90 min | |
| Working capacity 2200 Nm | |
| Torque 12500 Nm | |
| More information on the product page |
Please note our general terms and conditions
