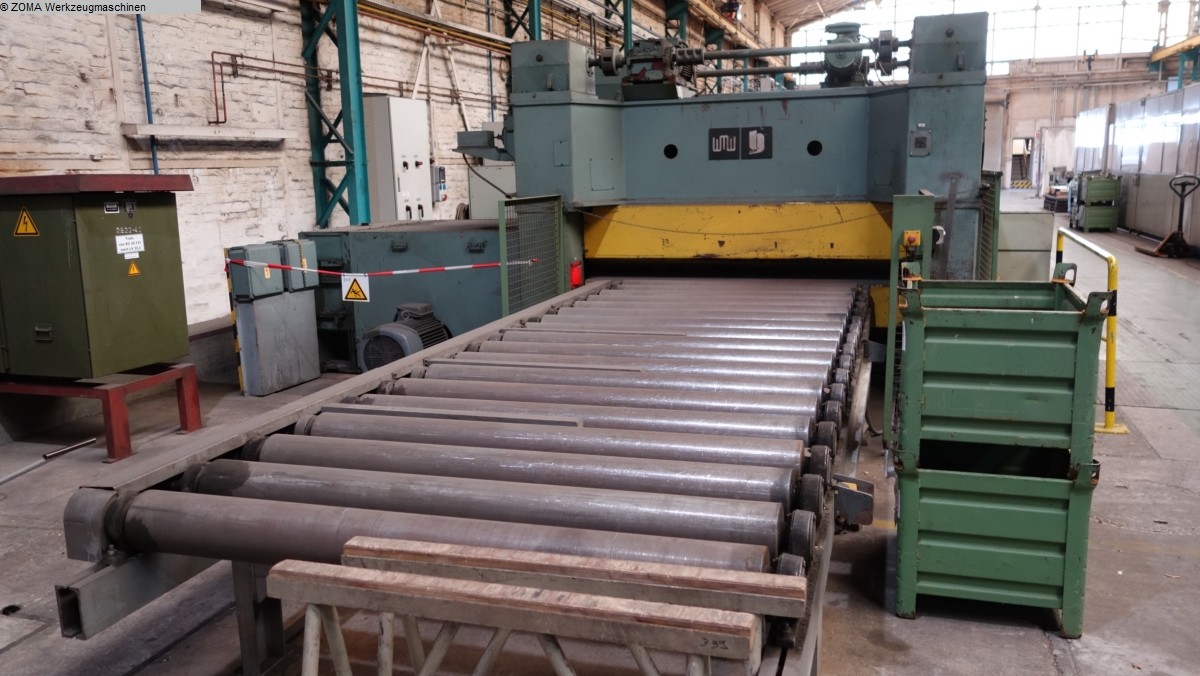

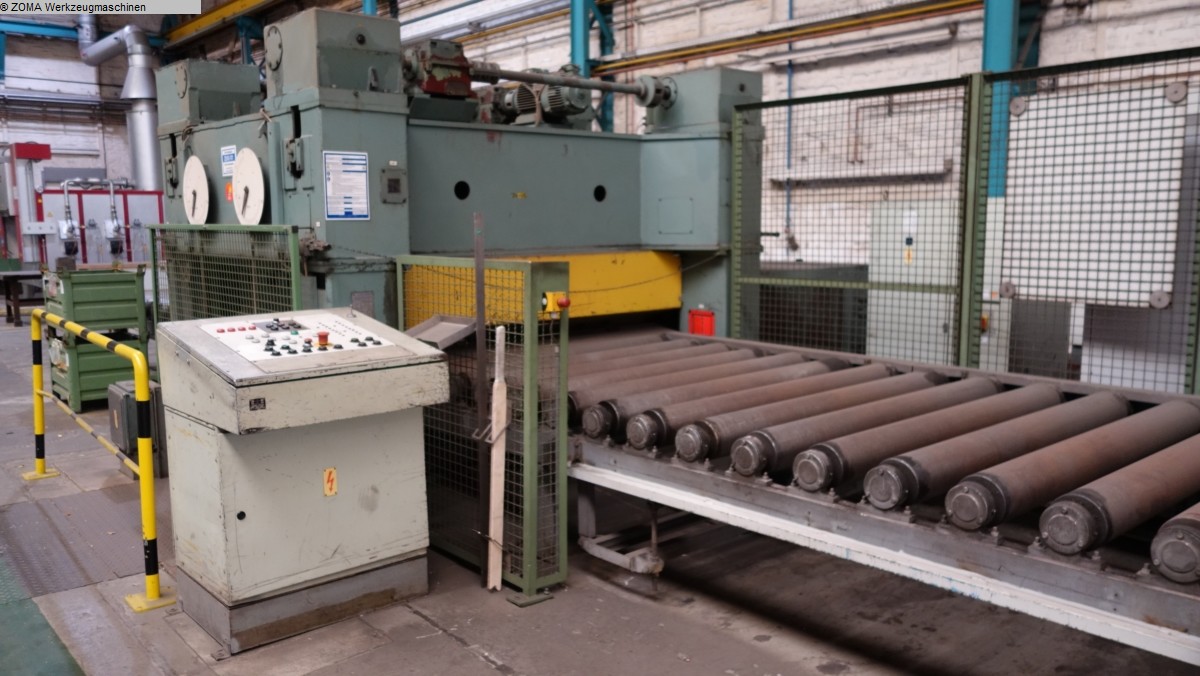

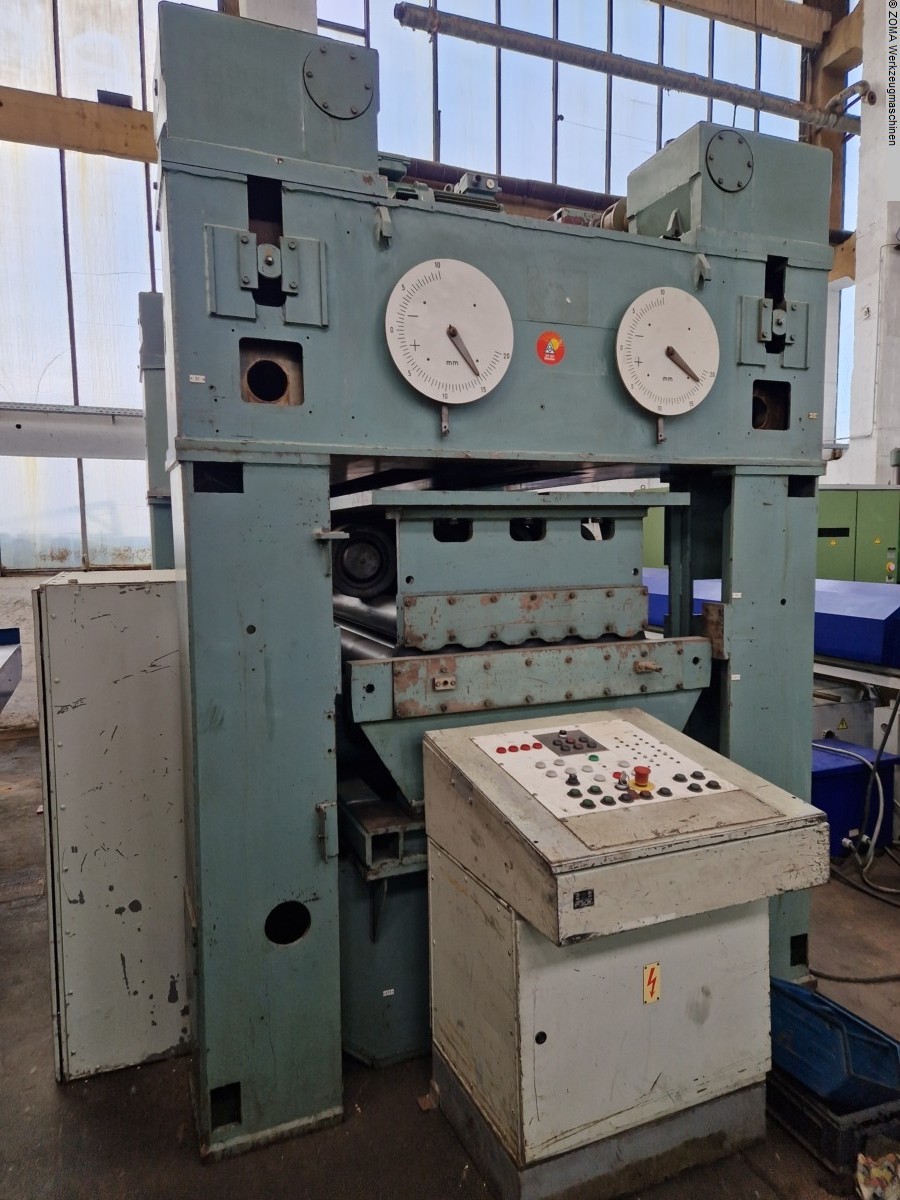

WMW-BLEMA UBR 10 x 2000/ 1-16 | 1987

Sheet width 2000 mm
Sheet thickness 10 mm
Sheet thickness - min. 3 mm
Number of levelling rollers 13 pcs.
Straightening roller diameter 145 mm
Bale length 2330 mm
Centre distance of the straightening rollers 150 mm
Standard speed 16 m/min
Support roller diameter 290 mm
Number of back-up rollers 21/24 pcs.
Main drive motor 30 kW
Weight 32 tonnes
- Lifting speed of the traverse: 0.71 mm / sec
- Lifting range of the traverse: -18 mm to /to +42 mm
- Max. swivelling of the lower crossbar: 8 mm
