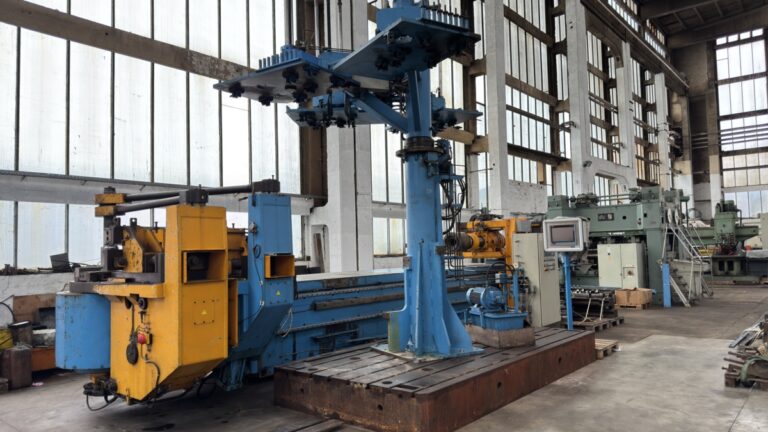

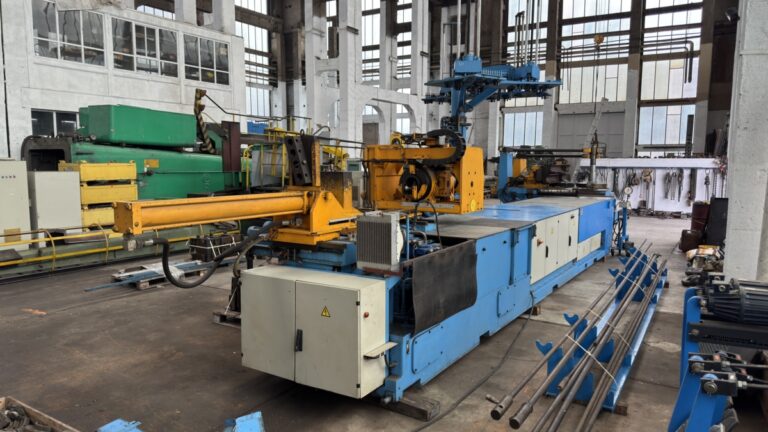

Stock number: 2084-1062
Technical data
| Tube diameter 168.3 x 11 mm | |
| Pipe extension length 6000 mm | |
| Bending radius max. 700 mm | |
| Siemens 840 D control system | |
| More information on the product page |
Description of the
Tube diameter 168.3 x 11 mm
Pipe extension length 6000 mm
Bending radius max. 700 mm
Siemens 840 D control system
Bending radius min. 80 mm
Bending angle max. +/- 190 °
Connected load 400 V / 50 HZ /85A
Dimensions (length/width/height) 11.9 x 2.7 x 2.45 m
Machine weight approx. 33 tonnes
- CNC control system CNC MMI Multicontrol 2000 - NCU control system - PLC Siemens Simatic S7 - electrical connected load 400V / 50 Hz / 85 A The machine is fully automatic and equipped with a tool changer. The following tools are available: Pipe Ø 48.3 mm; radius 105 mm Pipe Ø 60.3 mm; radius 120 mm Tube Ø 63.5 mm; radius 150 mm Tube Ø 76.1 mm; radius 190 mm Tube Ø 88.9 mm; radius 222 mm Tube Ø 114.3 mm; radius 285 mm Tube Ø 139.7 mm; radius 350 mm Tube Ø 141.3 mm; radius 700 mm Tube Ø 168.3 mm; radius 420 mm There were a few mandrels on which a marking was directly engraved. These had the following specifications: 88.9 x 8 mm; 88.9 x 4.5 mm; 114.3 x 8.8 mm; 139.7 x 8.8 mm; 168.3 x 12.5 mm; 168.3 x 8.8 mm The following outer diameters of the mandrels were measured: 23.2 mm; 32.3 mm; 37.1 mm; 41.5 mm; 59.3 mm; 70.3 mm; 77.7 mm; 80.9 mm; 88.7 mm; 93.2 mm; 94.7 mm; 103.0 mm; 112.8 mm; 118.8 mm; 128.9 mm; 138.5 mm; 147.2 mm; 153.6 mm The accessory package has a value of approx. 150.000,- €
