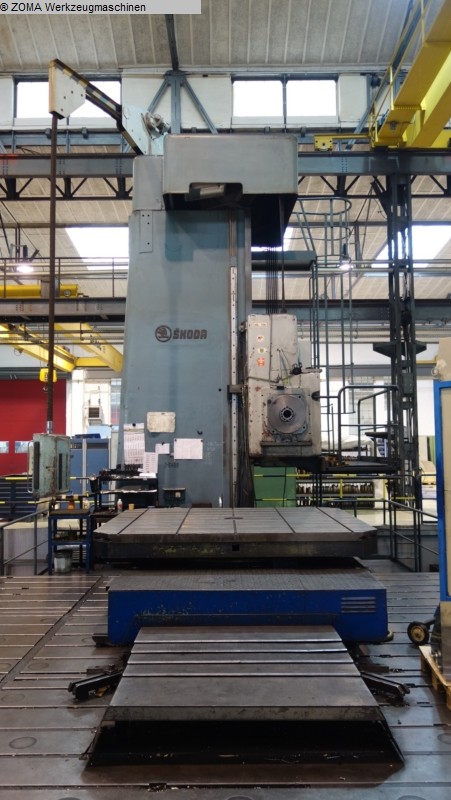

SKODA W 200 H | 1983

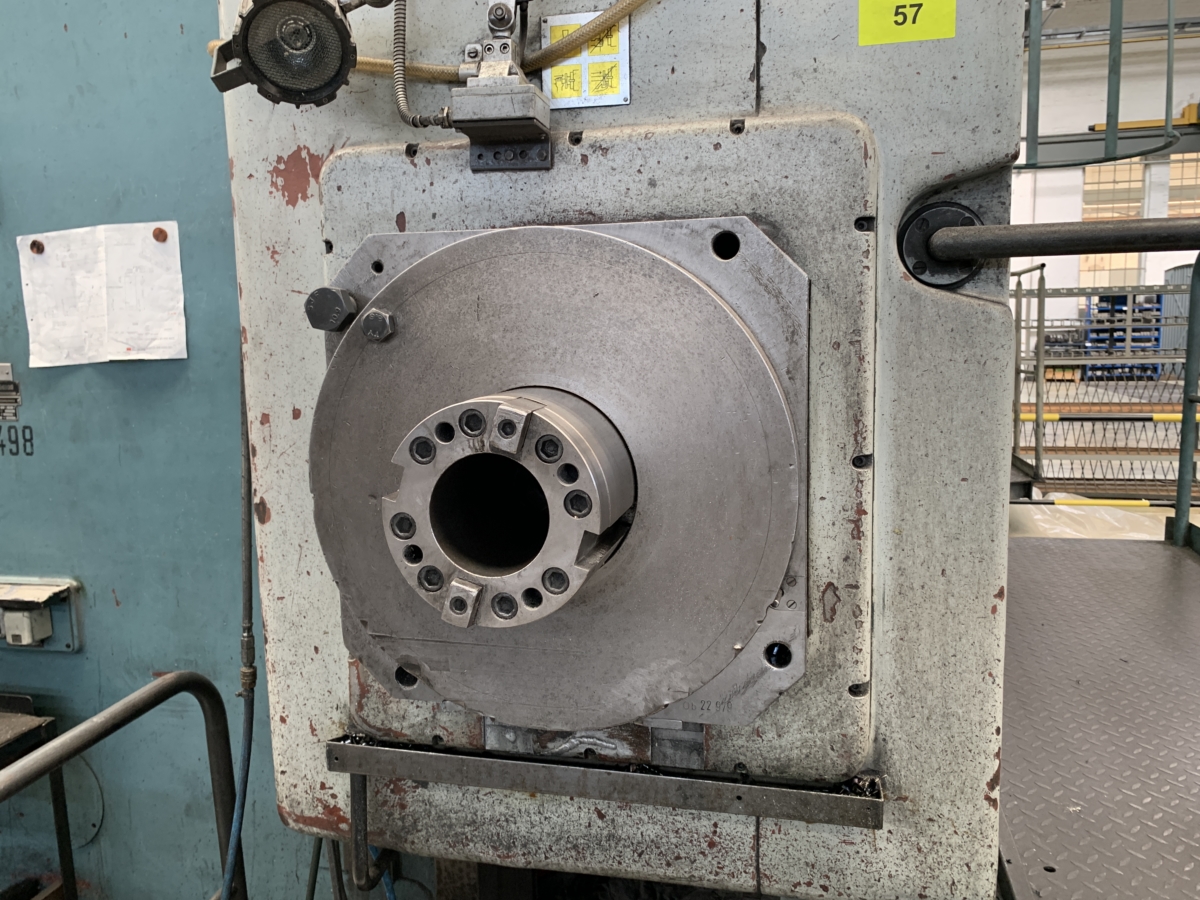

Spindle diameter 200 mm
Machining width 6000 mm
Machining height 3150 mm
Machining depth max. 1985 mm
Sliding cross-section 530 x 550 mm
Table load 20 tonnes

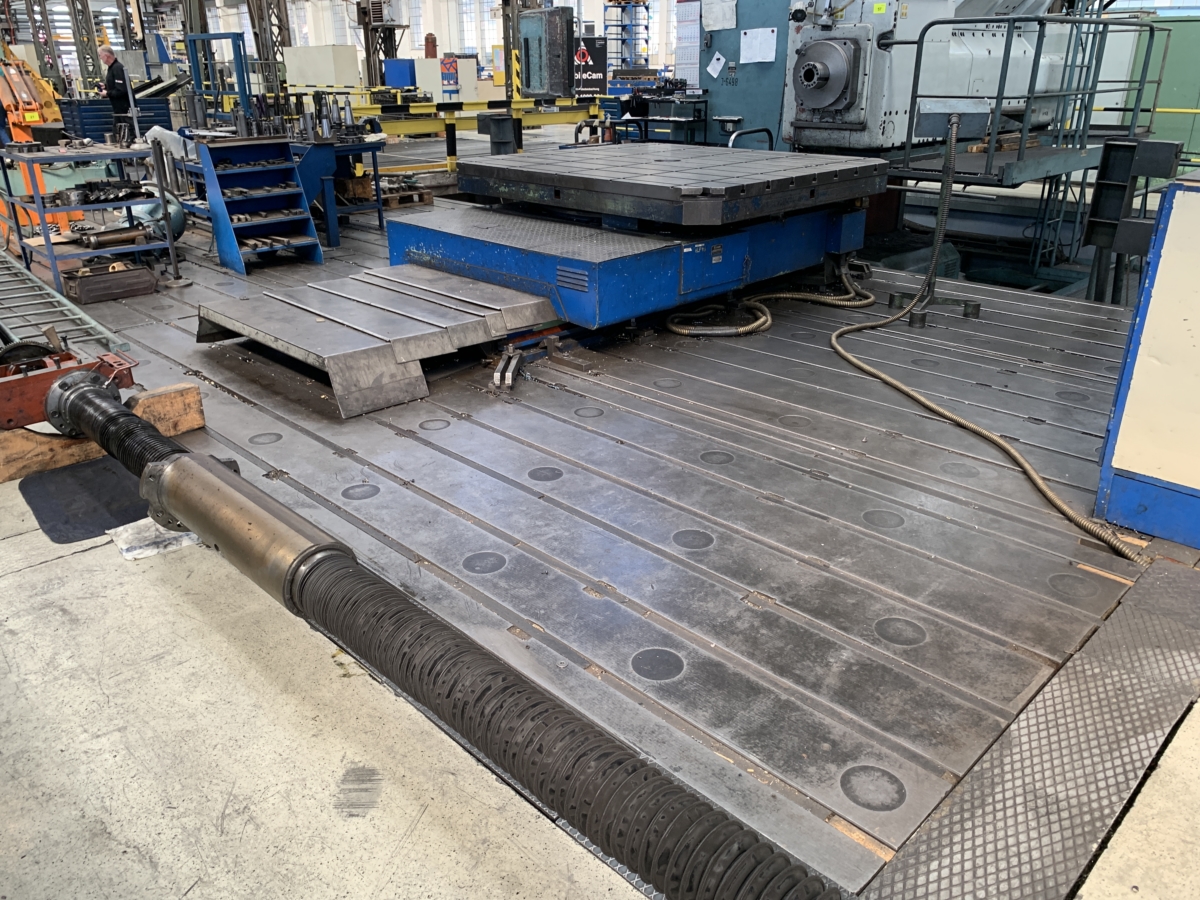

Plattenfeldgröße 11.200 x 5.550 mm
Tool holder SK 60
Total power requirement 83 kW
Machine weight approx. 173 tonnes
- Additional equipment Angle head large and small
- The OB no. is: 22979
- The table is model S20 MP Table size: 2200 x 2500 mm
- The processing width on the X -Way machine is 6000 mm
- Including 6 panels 5600 mm x 1850 mm
